The effect of varying the standard deviaton parameter

For optimium viewing please resize your browser window so that the two plots (full spectrum and fingerprint details) display side-by-side.

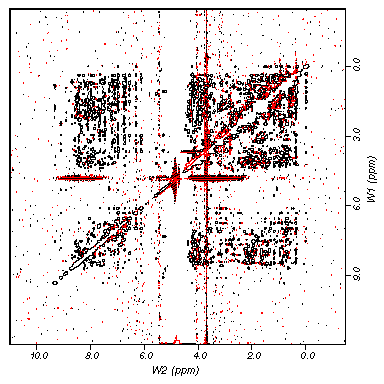

The raw data

For more info on the raw data, see the main page.

Facelift parameters: 32 1.5 32 5

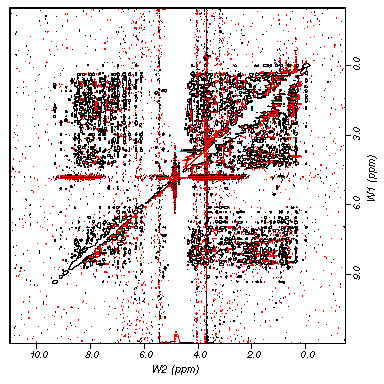

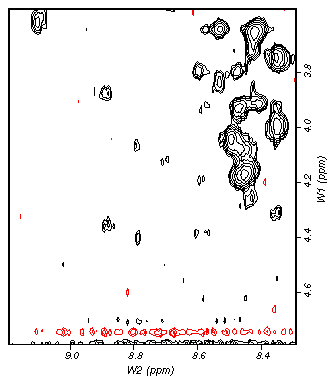

Facelift parameters: 32 2.0 32 5

Facelift parameters: 32 3.0 32 5

Clearly, the standard deviation is the most important parameter. In this low S/N spectrum, weak peaks are lost, if this value is set too high.
