The effect of varying the varying the smoothing data window in the orthogonal dimension

For optimium viewing please resize your browser window so that the two plots (full spectrum and fingerprint details) display side-by-side.

The raw data

For more info on the raw data, see the main page.

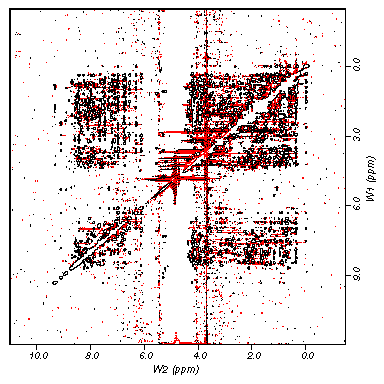

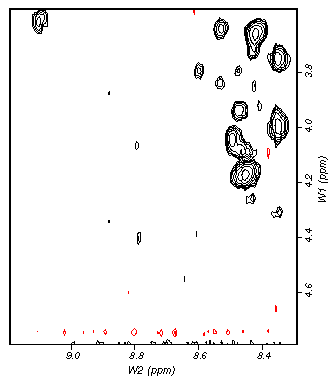

Facelift parameters: 32 3.0 32 3

Facelift parameters: 32 3.0 32 5

For this spectrum, peaks look nearly the same if the smoothing parameter for the second dimension is raised from 3 to 5. We're retaining more ridges, but they do not interfere much with the analysis.
